Insulation

Cincinnati and Louisville Attic Insulation

Properly installed attic insulation is a vital component of any roofing system. Attics that are properly insulated will prevent common roof problems such as ice dams, condensation, and mold growth in the attic. Attic inspections performed by our staff often reveal deficiencies in the roof system due to inadequate amounts of insulation or improperly installed insulation.

Common Insulation Problems

The most common problem with attic insulation is found in homes that were constructed prior to 1980. The majority of these homes are under insulated. Here are two simple ways to determine if an attic space needs more insulation:

dsc2349

1.  Are the tops of the rafters visible?

If so, the R-Value (a measure of thermal resistance) is too low, and attic insulation should be added.

inneficientroof1

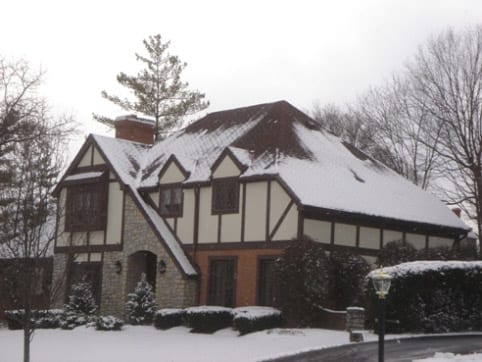

2. Does snow on the surface of the roof melt before it melts on the ground?

If so, heat is escaping through the living space and additional attic insulation is needed.

Common Installation Mistakes

Our inspectors often find attic insulation that was improperly installed. Below are examples of common mistakes that installers can make.

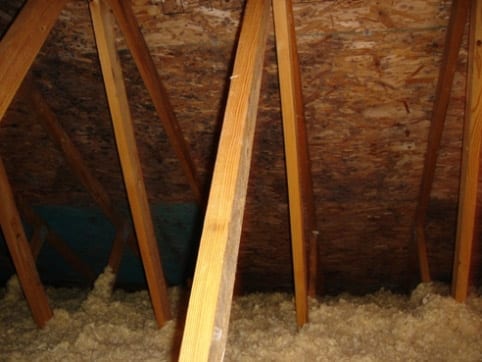

It is important that roof vents are not obstructed by insulation. In the photo to the right, the blown-in insulation is covering the soffit vents. This prevents proper rooftop ventilation and can lead to a number of problems including ice dams, mold contamination due to high humidity, structural roof damage, and premature shingle failure. Poor ventilation also decreases the energy efficiency of the roofing system by causing an increased load on the cooling system. Insulation baffles are installed to ensure soffit vents are unobstructed.

soffitventsblocked

Attic baffles should be installed to let air from the soffit vents enter the attic space (the air is exhausted at the top of the attic by roof vents). Baffles that are installed incorrectly can allow heat to escape from the living space below. During an Infrared Inspection of the home pictured to the right, heat loss was discovered along the perimeter of the house. An inspection of the attic revealed baffles that were installed too far inward on this house, leaving a small void in the thermal boundary. The heat loss in this case was causing an ice dam and roof leaks. Baffles were reinstalled 2 inches from the soffit vents and the ice dams were repaired without replacing any roofing materials.

Bad insulation

Attic doors are often uninsulated. The Infrared photo above is a good example of how inefficient an uninsulated attic door can be. Foam attic door systems are available or an insulated door can be constructed by securing batt insulation to the attic side of the entry.

ir26sm

Unless your home was constructed with energy efficiency in mind, the rim joists were probably insulated incorrectly. Using fiberglass batt insulation at the rim joists is not the best practice. The infrared picture above shows the heat loss associated with this style of installation.

dsc2997

Installing 2″ rigid foam boards at the rim joist opening is an air tight way to insulate this area of a house. The foam can be secured and all air gaps voided with spray foam insulation.

rimjoists

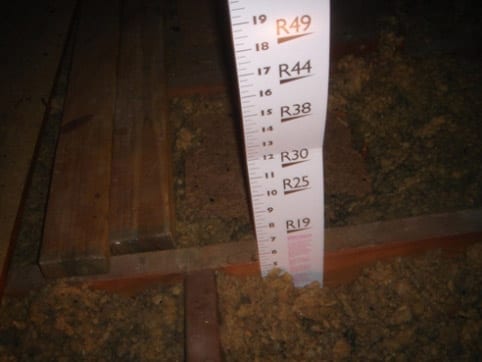

R-Value

r49

Insulation is measured by its thermal resistance or R-Value. “R” means the resistance to the flow of heat. The Higher the R-Value, the greater the insulating power. The U.S. Department of energy recommends that an attic in the Greater Cincinnati area is insulated to an R-Value of 49. Our installers permanently secure measuring sticks in the attic to ensure the desired amounts of insulation are installed. 18 inches of Owens Corning PINK FIBERGLAS loosefill insulation will achieve R-49.

Combat Energy Costs

Increasing the levels of insulation in your attic has several benefits. Your home will be more comfortable year round and savings on energy costs could be as high as 20%. As energy costs increase, so do your savings. Deer Park Roofing has highly trained installers who understand the importance of attic insulation in relationship to your roofing system. Click here to request an estimate.
Cincinnati insulation contractor Deer Park Roofing, Inc. is a member of the Insulation Contractors Association of America.

News & Resources

Installed Counter Flashing before solder






Roof Flashing: different types, how to install them, and when you should replace them

If we look at a pie chart of our monthly service requests in Louisville Ky, leaks at roof flashings are the biggest piece of the pie.  A poorly installed flashing repair compromises the integrity of the roof.  At Deer Park…



Seamless gutters






10 Components of a Successful Gutter System

Gutters and Downspouts are designed to drain rainwater away from your home or building without causing damage to your foundation, basement, landscaping, or other building materials.  An effective gutter and downspout system includes a number of different accessories, including splash…



metal thermal movement






Understanding Thermal Movement

Understanding thermal movement in residential metal roof systems is key to long-term performance Roofing contractors often are amazed at the time-tested craftsmanship of sheet-metal systems that are removed from historical structures. It’s not uncommon for some of these systems to…



ice dam gutters






Ice Dams

Several factors contributed to problem roofing area in the photo below. Even though the shingles were in good condition and installed properly, leaks were occurring in the winter months due to ice dams. To remedy the situation, the homeowner installed…








Hail Damage to Roof Systems

Hail Damage to Roof Systems Hail storms can cause significant damage to all types of roofing systems, including asphalt shingles. Hail damage to roofs can be identified by discovering distress marks on the surface of the roof. In the case…



Chimney Flashing Soldering






Solder Versus Caulk

Solder A metal alloy that is used for permanently bonding metal flashings together. The word solder is derived from the Latin term solidare which means “to make solid”. Most solder, especially used in a roofing application, is made up of…








Residential Roof Repair or Replacement

Roof Leaks Roof failures occur for a number of different reasons. The main reasons are poor design, installation errors, age of roof, and flashing defects. The most common types of failures are noticed in roof leaks. These are normally discovered…



Louisville Drip edge






5 Types of Drip Edges on Metal Flashings

5 Types of Drip Edges on Metal Flashings Drip edge can be found on many metal flashings and components that are installed on your roof system, including: Gutter apron Rake edge flashing Gravel stop Chimney caps Coping The outward projecting lower…



dissimilar-metals






Dissimilar Metals in Roofing Applications

Be Cautious When Using Dissimilar Metals in the Same Roof System Many different types of metals are used in various roofing materials, flashings, and fasteners. Problems can occur when two different types of metals (also known as dissimilar metals) are…

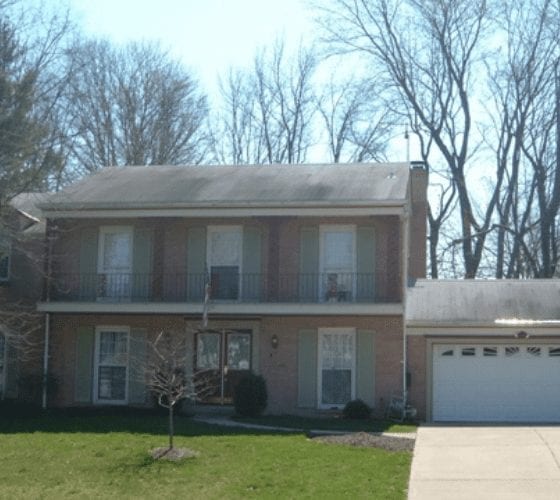

Algae on roofs






Algae Roof Stains

Roof discoloration from algae or fungus growth made its way to the Cincinnati area about 10 years ago. It originated in the coastal areas of the southeastern United States and traveled north. The name of the algae is Gloeocapsa Magma.…








Soffit and Eave Intake Vents

Traditional homes, like the one pictured above, contain an overhang near the eave area where intake vents can be installed. The intake vents are the most important component to any roof ventilation system. As warm air in the attic rises,…

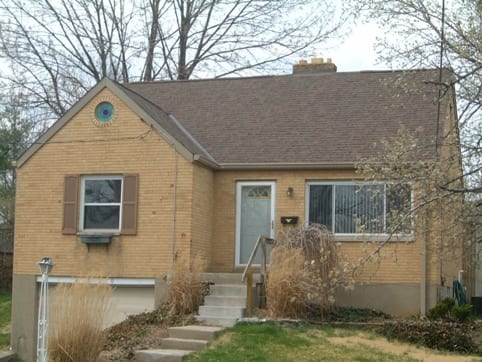

Insulating and Ventilating a Cape Cod House

Cape Cod Stye homes are very common in the Louisville KY area. These are typically smaller 1 story homes. Insulating and ventilating cape cod style houses can be very challenging. Anyone who has lived in one of these types of…








Metal Patio Roof – Cincinnati and Northern Kentucky

Deer Park Roofing replaced the asphalt shingles on this patio roof with a beautiful new standing seam metal roof. This customer wanted to remove the asphalt shingles from their patio roof and install a standing seam metal roof. Since the…








Deck Waterproofing Project – Cincinnati and Northern Kentucky

Deer Park Roofing designed and installed this beautiful new deck to create a covered, waterproof patio underneath. This is a photo of the deck that was removed. A new deck is being installed with the goal of achieving a waterproof…

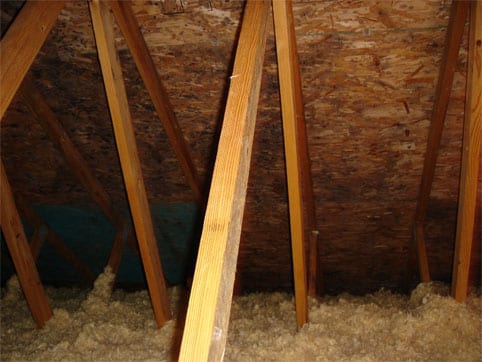

Mold in Attic
